Bravo Communications LAN/Network Surge-Protected Patch Panel - RM16PoE/LAN8G
$0.00
Product Tags:
Product Tags:
Product Tags:
Product Tags:
Product Tags:
RM16PoE/LAN8G
Sure/Fire RJ45 Gigabit PoE Protector (Data = 1-8; Power = 1-8 )
16-Ports across / 1U Space
- Protects all Cat.5/Cat.6 Power over Ethernet (PoE) Ports up through full Duplex Ethernet
- Supports all PoE equipment for up to 1.25 Amps per conductor (8 wires /
- conductors per port)
- Supports all PoE equipment for delivering up to 120 Watts of power @ 48V to remote devices
- Meets Gigabit Ethernet 1000Base-T Standard IEEE 802.3AB and Legacy Ethernet UTP standards
- Meets all PoE Standards including IEEE 802.3AF and major Legacy Vendor Standards
- Supports both PoE modes A & B transparently
- Expected to meet/exceed pending Standard IEEE 802.3AT (PoE Plus) for powering higher wattage remote devices (useable power 50 Watts plus)
- Protects all 8 signals/wires per port up to 250 Mhz with straight-through wiring
- Supports 1 Gigabit Ethernet applications (and up to 2 Gigabit data speeds)

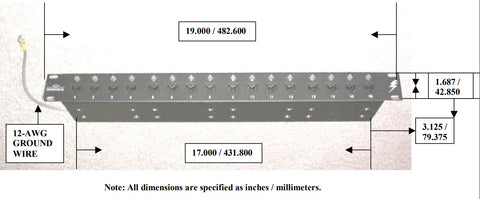

- 16-ports across with single-point grounding using only 1U of 19.0” vertical rack space. May be front panel screw grounded or grounded using Bravo supplied 9.0” long 12 AWG ground wire
- Individual LAN port surge test light for all ports (diamond-shaped red LED)
- Normally rear panel surge protected but can also be front panel surge protected
- 4-port card modules are hot swappable
- Stops all voltage transients greater than ± 68 Volts and up to 25K Amps per line in less than a pico-second.
- Protects LAN equipment repeatedly and then automatically resets itself
- Unique 3-stage protection on all signal lines is powerful enough to use for both inter-building and intra-building cable run installations.
- Compatible with both poe and non-poe ethernet equipment installations for universality shielded (STP) connector version is also available (SRM16POE/LAN8G)
- 5-year limited warranty
